To design a multi-use sports court with pickleball, start with a regulation 20 x 44-foot pickleball court as your base. Choose durable acrylic or post-tensioned concrete surfaces that work well for multiple sports. Install adjustable net systems and use distinct color lines for each activity, keeping pickleball lines white and 2 inches wide. Add LED lighting at 16 feet high for evening play. Your success depends on understanding the key elements of proper court design and setup.
Key Takeaways
- Design the court layout with pickleball’s 20×44 feet dimensions as the central feature, allowing other sports lines to be added around it.
- Install a post-tensioned concrete surface with an acrylic coating to ensure durability and proper ball bounce for multiple sports.
- Use distinct color-coding for court lines, with white 2-inch lines for pickleball and contrasting colors for other sports.
- Mount adjustable net systems and removable equipment to easily transition between different sports while maximizing court versatility.
- Ensure proper LED lighting with 30-50 footcandles of illumination and add 5-10 feet of safety zones around all playing areas.

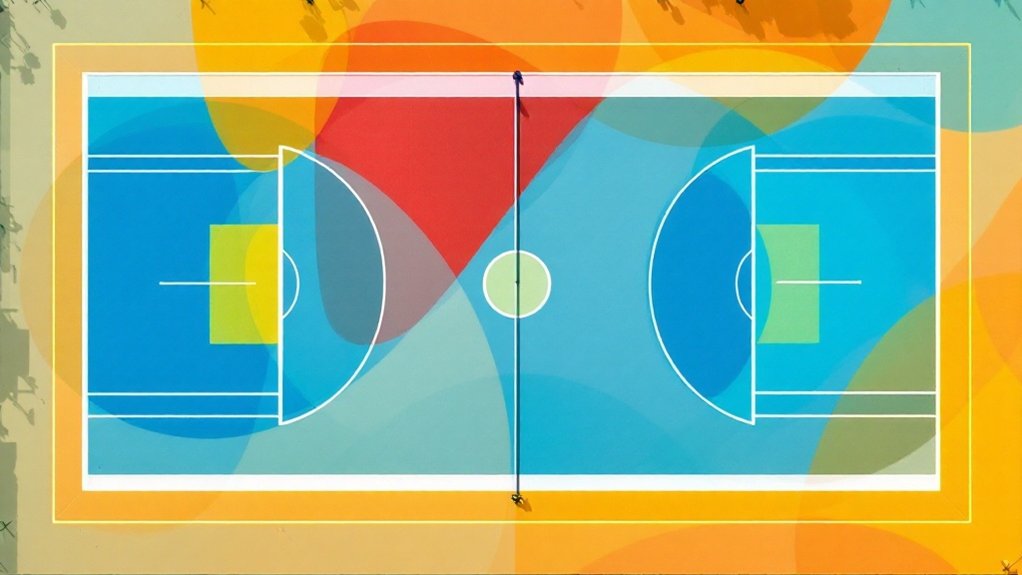

Understanding Court Dimensions and Space Requirements
Before designing a multi-use sports court, you’ll need to understand the standard dimensions for each sport you plan to include. A regulation pickleball court measures 20 x 44 feet, while a tennis court requires 60 x 120 feet.
Basketball needs 50 x 94 feet, and volleyball uses 30 x 60 feet.
You’ll also need to factor in perimeter safety zones and runoff areas. Plan for at least 5-10 feet of clearance on all sides.
When overlapping court lines, use different colors to help players easily distinguish between sports.
Consider vertical clearance,e too – account for overhead lighting and guarantee enough room for serving.
Selecting the Ideal Surface Material
When planning a multi-use sports court, selecting the right surface material is essential for player safety, performance, and longevity.
You must evaluate weather resistance, shock absorption, and maintenance requirements.
- Acrylic surfaces offer excellent durability and low maintenance, making them ideal for outdoor courts. They provide consistent ball bounce and good traction in various weather conditions.
- Post-tensioned concrete delivers superior crack resistance and stability, though it’s more expensive upfront.
- Sport court tiles allow for excellent drainage and reduced joint stress; they’re easy to repair by replacing individual sections.
Choose materials that match your climate and intended sports activities.

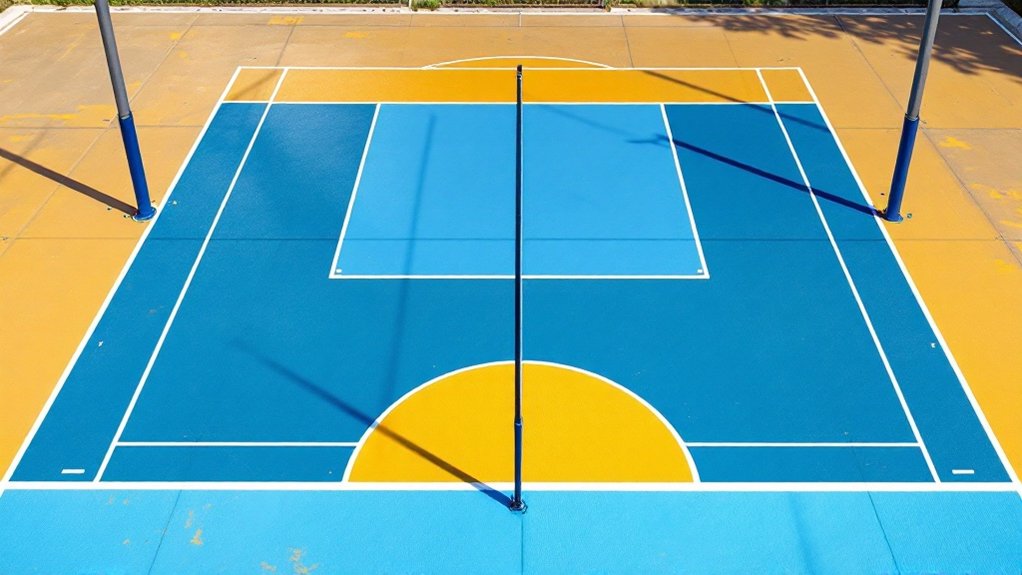

Strategic Line Marking and Color Coordination
Since multiple sports will share the same court space, proper line marking,g, and color coordination are essential for player clarity and game flow.
Use distinct colors for each sport’s boundary lines – white for pickleball, yellow for basketball, and blue for volleyball. Make pickleball lines 2 inches wide and guarantee they’re visible against your chosen surface color.
Paint the non-volley zone (kitchen) in a contrasting shade to help players quickly identify boundaries. When lines intersect, create small gaps to reduce confusion.
Consider using temporary tape for seasonal sports to maintain court versatility while preventing visual clutter.
Installing Multi-Sport Equipment and Features
The strategic placement of multi-sport equipment enhances your court’s functionality beyond the painted lines.
You must install adjustable net systems that accommodate pickleball and tennis height while ensuring quick conversion between sports.
- Mount permanent net posts with adjustable height mechanisms at regulation distances, using concrete footings for stability.
- Install removable basketball hoops with breakaway rims on the court’s perimeter, positioning them to minimize interference.
- Add retractable or removable boundary markers that you can easily adjust for different sports configurations.
Consider weatherproof storage solutions nearby to house portable equipment like nets, balls, and padding when they’re not in use.

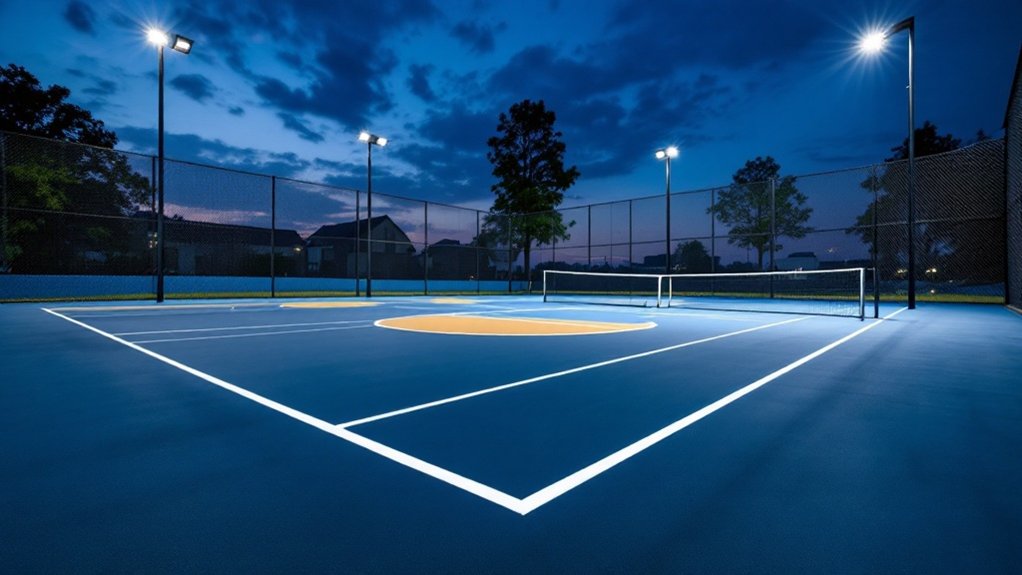

Lighting and Visibility Considerations
Proper lighting transforms your multi-sport court from a daytime-only facility into a versatile space for extended play hours.
To minimize shadows and glare, install LED fixtures at least 16 feet high at each corner and along the sidelines. You’ll need 30-50 footcandles of illumination spread evenly across the playing surface.
Choose lights with color temperatures between 4000K-5000K for ideal visibility of balls and court lines.
Don’t forget to include motion sensors and timers to conserve energy.
Add lower-level pathway lighting around the court’s perimeter for enhanced safety and to help players navigate during dawn and dusk.
Drainage and Maintenance Planning
Maintaining ideal court performance requires careful attention to drainage and regular upkeep.
You’ll need to incorporate proper slope and drainage systems to prevent water pooling, which can damage the surface and create unsafe playing conditions. Installing French drains or making a subtle gradient of 1% will help water flow away from your court.
- Schedule quarterly pressure washing to remove dirt, leaves, and debris
- Repair surface cracks immediately to prevent water infiltration and further damage
- Apply court sealant every 2-3 years to protect against UV damage and extend surface life
Keep maintenance tools and cleaning supplies readily available in a nearby storage area for quick response to court issues.

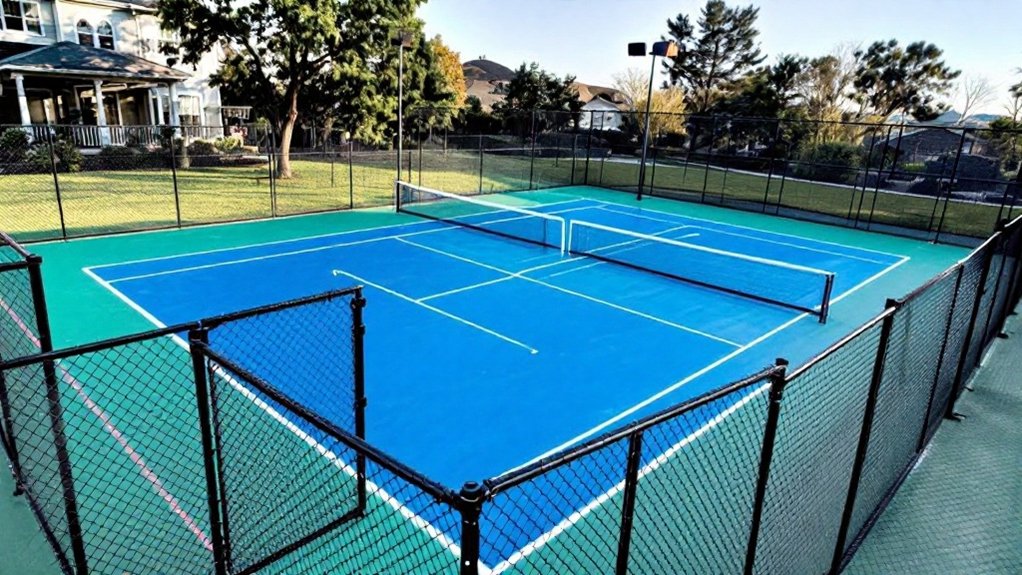

Safety Features and Perimeter Setup
Beyond regular maintenance, safety features around your court create a secure player environment.
Install proper fencing at least 10 feet high with gate access points to contain stray balls and prevent interference from outside activities. Add cushioned corner posts and padding on fence posts where players might collide.
You’ll need adequate lighting for evening play to minimize glare and shadows.
Include non-slip perimeter surfaces and connecting areas. For player safety, keep a 10-foot clear zone around the court’s edges and mark out-of-bounds areas clearly with high-visibility lines.
Consider windscreens to reduce environmental impact.
Frequently Asked Questions
What Is the Average Cost to Build a Multi-Use Sports Court?
Depending on your location and chosen features, you’ll typically spend between $30,000 and $80,000 to build a multi-use sports court.
Your basic court costs include site preparation ($5,000-$10,000), concrete foundation ($15,000-$25,000), surfacing ($8,000-$20,000), and equipment ($2,000-$15,000).
Don’t forget to factor in additional costs like lighting, fencing, and permits.
Premium features like cushioned surfaces or covered structures can cost over $100,000.
How Long Does It Take to Complete Construction?
You can expect your multi-use sports court construction to take between 2-4 weeks from start to finish.
However, this timeline can vary depending on weather conditions, site preparation needs, and local permitting processes.
You’ll need to allow additional time if you’re adding amenities like lighting, fencing, or advanced drainage systems.
Planning for unexpected delays and working with your contractor to establish a realistic schedule is best.
Do I Need Special Permits to Build a Court?
You’ll likely need permits to build a sports court on your property.
Check with your local building department or planning office, as requirements vary by location. You’ll typically need construction and possibly zoning permits if the court’s size affects property setbacks.
Some areas also require permits for lighting, fencing, or drainage systems.
Don’t skip this step – unpermitted courts can result in fines or removal orders.
Can the Court Be Installed on a Sloped Surface?
You shouldn’t install a sports court on a sloped surface without first leveling the area.
While you can build on a slight grade, you must create a level playing surface through excavation or fill. The maximum allowable slope for a court is 1%, or one inch per ten feet.
You’ll likely need retaining walls and proper drainage systems if you work with significant slopes. Professional grading is highly recommended.
What Is the Expected Lifespan of a Multi-Use Sports Court?
You can expect your multi-use sports court to last 15-25 years with proper maintenance.
The surface’s lifespan depends mainly on several factors, including the quality of the materials, installation method, climate conditions, frequency of use, and maintenance routine.
You’ll get the most longevity by choosing high-grade materials, performing regular cleaning, promptly repairing any damage, and applying protective coatings every few years.
Weather protection can also extend your court’s life considerably.
